| Product | |

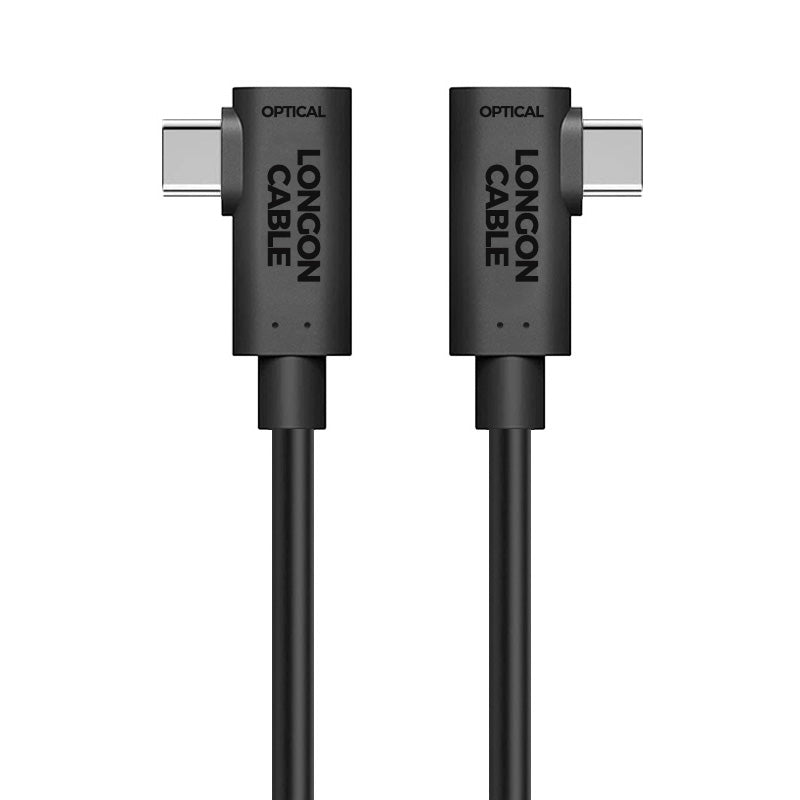

| Product Name | LONGON CABLE Optical Fiber USB3.1 Gen2 Type C Cable 90 Degree Right Angle |
| Brand | LONGON CABLE |
| Product Model | LG003 |
| Series Number | LGC-AOC-USB31-CMCM-03 |
| Key Features | |
| Product Type | AOC / Active Optical Fiber Cable |
| Product Version | USB3.1 Gen2 (Support USB3.1/3.0/2.0 within 5m/16feet ; Support USB3.1/3.0 from 5m/16feet to 30m/98feet) |
| Bandwidth | Up to 10Gbps |
| Power Supply | PD60W / 20V-3A (Support PD60W within 10m/32feet) |
| Transmission Distance | Up to 30m (100 ft) |
| Connector | |
| Connector 1 | USB Type C Male |
| Connector 1 Material | Nickel-plated Stainless Steel |
| Connector 1 Dimensions | 8.25(L) * 2.35(W) *6.65(H) mm |
| Connector 2 | USB Type C Male 90 Degree Right Angle |
| Connector 2 Material | Nickel-plated Stainless Steel |
| Connector 2 Dimensions | 8.25(L) * 2.35(W) *6.65(H) mm |
| Cable | |
| Cable Type | Hybrid Optical Fiber and Copper |
| Cable Construction | 2x OM3 Optical Fiber, 6x Copper Conductors |
| Fiber Type | Multimode Glass Fiber |
| Light Attenuation Rate | ＜0.0035dB/m |
| Outer Jacket Material | TPE (Black) |
| Cable Diameter | Φ 4.5 mm / 0.015 feet |
| Tensile Strength | 100N / 200N(Long-term / Short-term) |
| Compressive Strength | 200N / 400N(Long-term / Short-term) |
| Minimum Bending Radius | 50mm / 20mm(Dyanamic / Static) |
| Housing | |
| Housing 1 Material | TPE |
| Housing 1 Color | Black |
| Housing 1 Dimensions | 14(L) * 8(W) *37.5(H) mm / 90 Degree Right Angle |
| Housing 2 Material | TPE |
| Housing 2 Color | Black |
| Housing 2 Dimensions | 14(L) * 8(W) *37.5(H) mm / 90 Degree Right Angle |
| Installation | |
| Install Direction | Bidirectional Installation / No Need to Distinguish Directions |
| Power Connect | No External Power Supply Required |
| Supported Operating System | Windows/Mac OS/Linux |
| Application | Camera/Phone/PC/VR/AR/MR/Disk/Docking Station etc. |
| Environmental | |
| Operating emperature | -20°C to 70°C (-4°F to 158°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Operating Humidity | ＜ 90% Relative Humidity, Non-condensing |
| Storage Humidity | ＜ 90% Relative Humidity, Non-condensing |
| Compliance | |
| Regulatory | RoHS, Reach (*Optional UL, CMP, CE, FCC Version) |
| Support | |
| Warranty | 1-year |
| Buy | Click here |
| OEM/ODM | Support@LongonCable.com |
